New Reduced price! Runva 12 Volt - 12500lb (5670kg) - Electric Winch - IP67 View larger

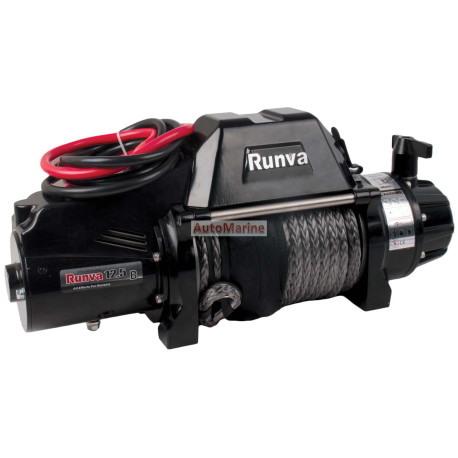

Runva 12 Volt - 12500lb (5670kg) - Electric Winch - IP67

EWB12500R

New product

Runva 12500lb (5670kg) 12 Volt Electric Winch - IP67 Rated

Features:

  • All-new patented waterproof design meets IP67 standards
  • Innovative brake inside the gearbox, offers exellent safe, reliable perfprmance
  • Stainless steel rotary clutch for smooth and convenient operation
  • Stainless steel out-installed screws
  • Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation
  • Copper connection sealed control pack with elegant appearnce
  • High-efficient transmission delivers 9m/min pull-in speed and power saving
  • Over-current protechtion available for safe winching
  • Compression-resisted rubber hand remote control

Motor: 12V Input: 5.9kW /7.9hp / Output: 2.4kW /3.2hp

Geartrain: 3 Stage Planetary Steel Gear

Gear Ratio: 228:1 Low Speed

Clutch: Rotary

Rated Line Pull: 12000Lbs / 5670kg (On First Layer)

Cable Type: Synthetic Rope

Cable Diameter x Length: 10.2mm×25.5m

Drum Size Diameter x Length: 63mm×217mm

Mounting Bolt Pattern: 254mm × 114.3mm 4-M10

Brake: Kachet Paw

Runva EWB Series Winch Diagram

This product is no longer in stock

R 15,610.50

-10%

R 17,345.00

Data sheet

Model579mm
Year(s)160mm
Engine Code283mm
